ID-8 Automatic Morse Station Identifier


Specifications:

  • Powered by 6 to 20 vdc, unregulated @ 6ma.
  • Low distortion,low impedance,adjustable sinewave output: 0 to 4 volts peak to peak.
  • Size 1.85" x 1.12" x.35"
  • Operating temperature range, -300C to +650C.
  • Transmitter PTT. open collector transistor (80vdc at 300ma.)
  • Crystal controlled for high accuracy
  • Reverse polarity protection built-in.
  • Immediate 1 day delivery.
  • Immune to RF.

  • ID8

    Programmable Features:

  • Eight programmable, selectable, messages
  • CW speed from 1 to 99 WPM
  • ID interval timer from 1 to 99 minutes
  • ID hold off timer from 1 to 99 minutes
  • CW tone frequency from 100Hz to 3000Hz
  • Front porch delay interval from 0 to 9.9 seconds
  • CW or MCW operation
  • Triggered with active High or Low.



  • $69.95

    Features:

  • All programming is stored in a nonvolatile EEPROM .

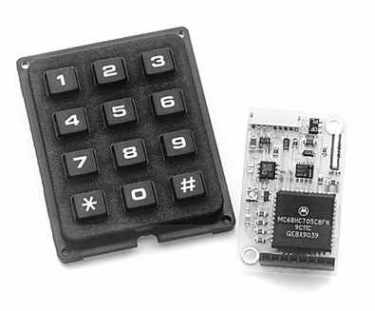

  • Field programmable with SUPPLIED keyboard.
  • Message length over 200 characters long.
  • All connections made with microminiature plug with color coded wires.
  • Full 1 year warranty when returned to the factory for repair.



  • Read the '73 Amateur Radio Today article on the ID-8

    ID-8 Instructions  |  Application information
