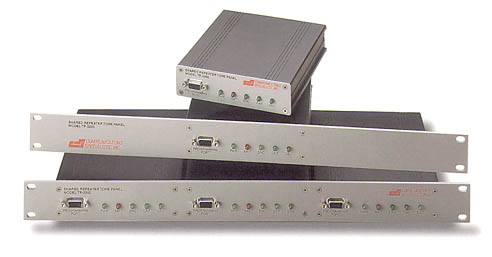

TP-32OO SHARED REPEATER TONE PANEL
 |
$269.95*
Table Top Version
STANDARD FEATURES
• 51 CTCSS Tones & 106 DCS Codes • Rear Panel Adjustments • On Line Computer Help • Pre-Paid Air Time Feature • Air Time Loading & Analysis Graphs • COS Input Polarity Selectable • Static & Lighting Protection built in • EMI Filtering for complete immunity to RF • Auto Self -Test • Ultra Low Current Drain 100ma Nominal @ 12VDC • Stuck Mic identification • Busy Channel Lockout prevents "Barg-in's" • Five LED's Display Status • Time-out Warning Tones • Carrier Only Access Mode • DB9 Radio interface with Pre-made Cables • Toll-Free Support • Start-Up Kit with Serial cables and Software included..
PROGRAMMING FEATURES
• 51 CTCSS Codes • Panel can be used as Stand Alone Tone & Code Display
of ALL 51 CTCSS,106 DCS & 16 DTMF Codes• 106 DCS Codes • Will not False on Adjacent Tones, even those with Reverse Burst • Repeater Enable/Disable • Remotely Programmable by DTMF or Local Programming through
menu driven RS-232 Port, or with Modem on Landline• Repeater CW ID • Pre-Paid Customer Time Blocks • Programmable CW ID per subscriber • Remote Enable/Disable of ALL Tones & Codes • CW ID Interval per subscriber • DTMF-DTMF Regeneration • CW ID Interval (System) • Global User Programming • Anti-Kerchunk Timer • Programmable Hang Time (Carrier Delay) per subscriber • Stuck Mic Activity Timer • Barge-In Enable/Disable per subscriber • DCS Input Polarity • Hog Timer Enable/Disable per subscriber • COR with Polarity Select • Regenerated CTCSS Tone or DCS Code Programmable
to turn off at the start or end of the Carrier Delay per subscriber• Programming Mode Access Code is programmable • Cross Tone, Cross Code Encoding per subscriber • Hog Timer, Hog Idle & Hog Monitor Timers • Direct CTCSS Frequency and DCS Code Entry • Programmable Courtesy Tone per subscriber • Test Procedure to set all Repeater Levels is built-in • Programmable Reserve Tone • Time & Hit Counters Record the time of ALL CTCSS & DCS Tones on the repeater channel • Time & Hit Counters Record the time of
ALL CTCSS & DCS Tones on the repeater channel• Real Time Display shows all Received Tones & Codes as they occur, even if not active in the panel • Regenerated Tone can be the same or different for ALL CTCSS & DCS Codes
ALL TONES & CODES LISTED BELOW ARE INCLUDED IN THE TP-3200
51 CTCSS Tones
63.0 94.8 136.5 177.3 218.1 017 053 125 172 251 315 411 462 565 712 0 * 67.0 97.4 141.3 179.9 225.7 023 054 131 174 252 325 412 464 606 723 1 # 69.4 100.0 146.2 183.5 229.1 025 065 132 205 255 331 413 465 612 731 2 A 71.9 103.5 151.4 186.2 233.6 026 071 134 212 261 332 423 466 624 732 3 B 74.4 107.2 156.7 189.9 241.8 031 072 143 223 263 343 431 503 627 734 4 C 77.0 110.9 159.8 192.8 250.3 032 073 145 225 265 346 432 506 631 743 5 D 79.7 114.8 162.2 196.6 254.1 036 074 152 226 266 351 445 516 632 754 6 82.5 118.8 165.5 199.5 043 114 155 243 271 356 446 523 654 7 85.4 123.0 167.9 203.5 047 115 156 244 274 364 452 526 662 8 88.5 127.3 171.3 206.5 050 116 162 245 306 365 454 532 664 9 91.5 131.8 173.8 210.7 051 122 165 246 311 371 455 546 703
