RA-12

AA/AAA Ni-Cd/Ni-MH Rapid Charger/Conditioner

Specifications:

• Input voltage 12VDC/850mA for home/office/mobile charging.
.
• Charging rate of 850mA +/-5% (AA pair), 350mA +/-5% (AAA pair)
.
• Discharge rate of 300-380mA, automatically switches to charge mode at end of discharge.
.
• Full charge trickle current, AA: 30-40mA, AAA: 20ma.

$36.95

Features:

• Charges AA & AAA Ni-CD or NiMH rechargeable batteries.
• Built in discharge function to eliminate memory effect of Ni-CD batteries.
• Automatically switches to charging mode when discharge cycle is completed.
• Maintains trickle charge to keep batteries fully charged and ready for use.
• -dV,dT,Tmax,Timer to protect and prolong battery life.
• Two separate temperature protection circuits prevent overheating and damaging cells.
• Microprocessor detects remaining capacity of cells and safely charges them.
• Two push buttons control charging/discharging.
• Separate color LED’s to indicate charging status.
• Supplied with AC wall transformer and DC cigarette lighter power cable.
• Warranty period, 90 days when returned to the factory for repair.

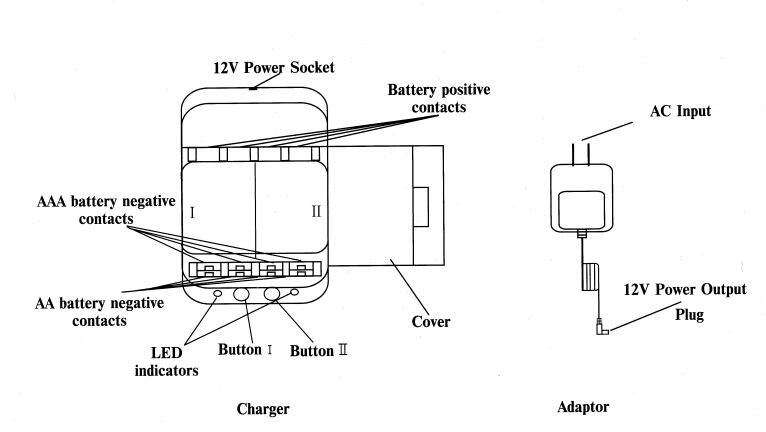

RA-12 Instructions

Please read prior to use.

• Do not expose this charger to rain or moisture
• Do not use in a confined space
• Keep away from flammable materials
• Do not open this charger. No user serviceable parts inside.
• Avoid any mechanical shock

• Keep charging contacts clean
• Ni-CD/Ni-MH batteries should be the same type, size and capacity in each compartment.
• DO NOT reverse polarity of the cells. Damage will occur which is NOT covered under warranty.

• Plug the supplied transformer into a 120 VAC outlet and the plug end into the rear of the charger.



• The LED will illuminate green during initialization for five seconds then extinguish.



• The LED will remain green when no batteries are installed. The LED will flash red once every 30 seconds. This is normal.

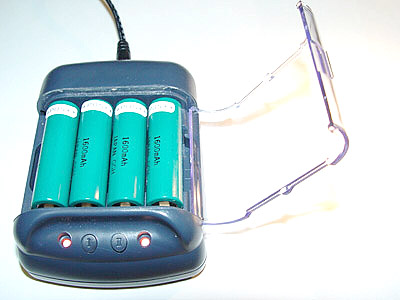

• Batteries are charged in pairs. They must be the same type and size in each compartment. Be sure the positive ends of both batteries are facing the rear of the charger (+ end) in each compartment.



• The LED will illuminate red during the charging cycle. When complete, the LED changes to green. The batteries are being trickle charged (green LED) after the initial charging sequence is complete. The LED will flash RED once, every 30 seconds indicating full charge in trickle mode.



• Deep cycle discharging is available in both compartments for Ni-CD batteries. Place your two AA or AAA batteries in either of the two compartments (Both can be run simultaneously). Push button I for the left side compartment and or button II for the right side to start the discharge mode. The LED for each compartment will blink yellow during discharge then changes to red indicating charge mode. When complete, LED glows green indicating trickle mode.
